Designing a 311 Alexa App for the City of Boston

There was an excited energy in our first meeting with the City of Boston’s Digital Team, palpable even through the clunkiness of our Zoom digital meeting space: we would be working on something different.

A few months prior, at the end of January, 2020, the local chapter of the grassroots volunteer organization Code for America had created an Alexa Skill for the city - essentially, an app that can be installed onto an Amazon Alexa voice assistant device to give it new functionality. This skill, “Boston Info”, would provide Bostonians with live, up-to-date information about city services and alerts, such as trash delays and street cleaning. It’s the product of what’s known as a “hackathon,” a marathon-paced coding session over a few sleepless days with the goal of producing a functional piece of software at the event’s end. While the resultant Alexa Skill is an impressive piece of work, especially given its initial constraints, it had not yet been given the proper time for the design and testing it needed to ensure using it would be a positive and useful experience. Enter: UX Design.

Research

Perhaps the most important phase in the Design process is the first: research. Who are the people who will be using this product? What are their needs, and what issues do they currently have that could be solved by this Alexa Skill? If we don’t know what the user base's needs are, we cannot begin to design a solution for them.

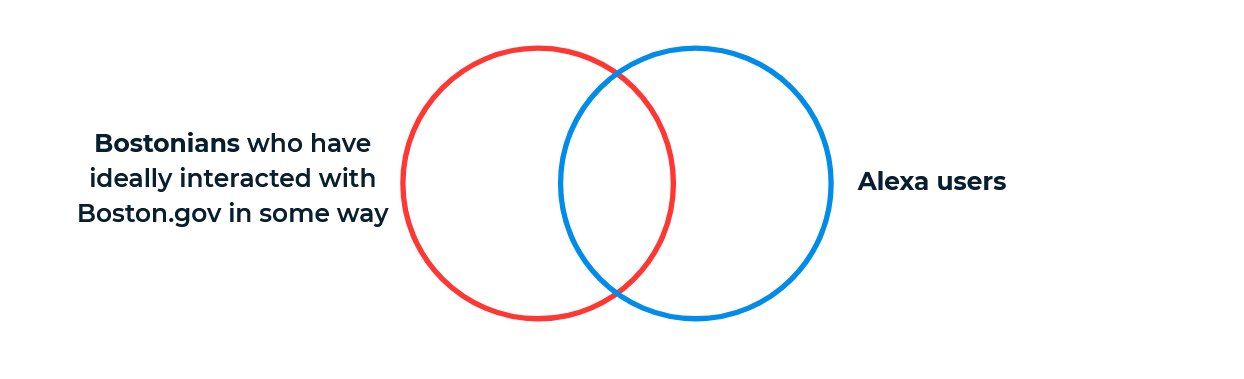

In order to most efficiently learn about our users, we investigated them by dividing them into two major buckets: Those who live and interact with the City of Boston, and those who own or interact with an Alexa device. Certainly our primary interest was in those who fit both descriptors, but learning about each separately was still easily extendable to our core user, while remaining feasible within our 3-week constraints.

Though we were not able to leave our homes to find people to research, we still had a number of techniques up our sleeves for reaching out to folks and finding the information we needed to know:

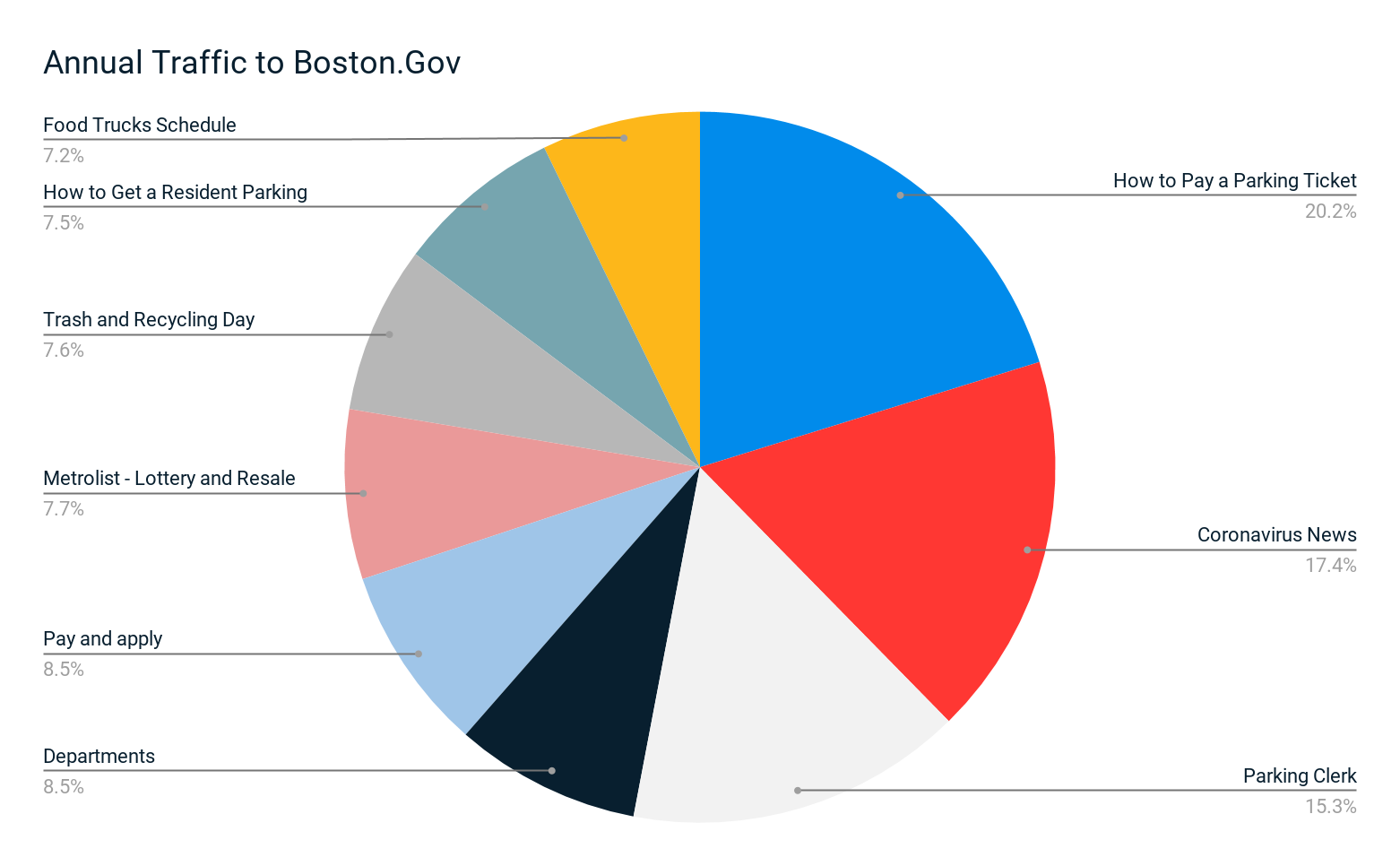

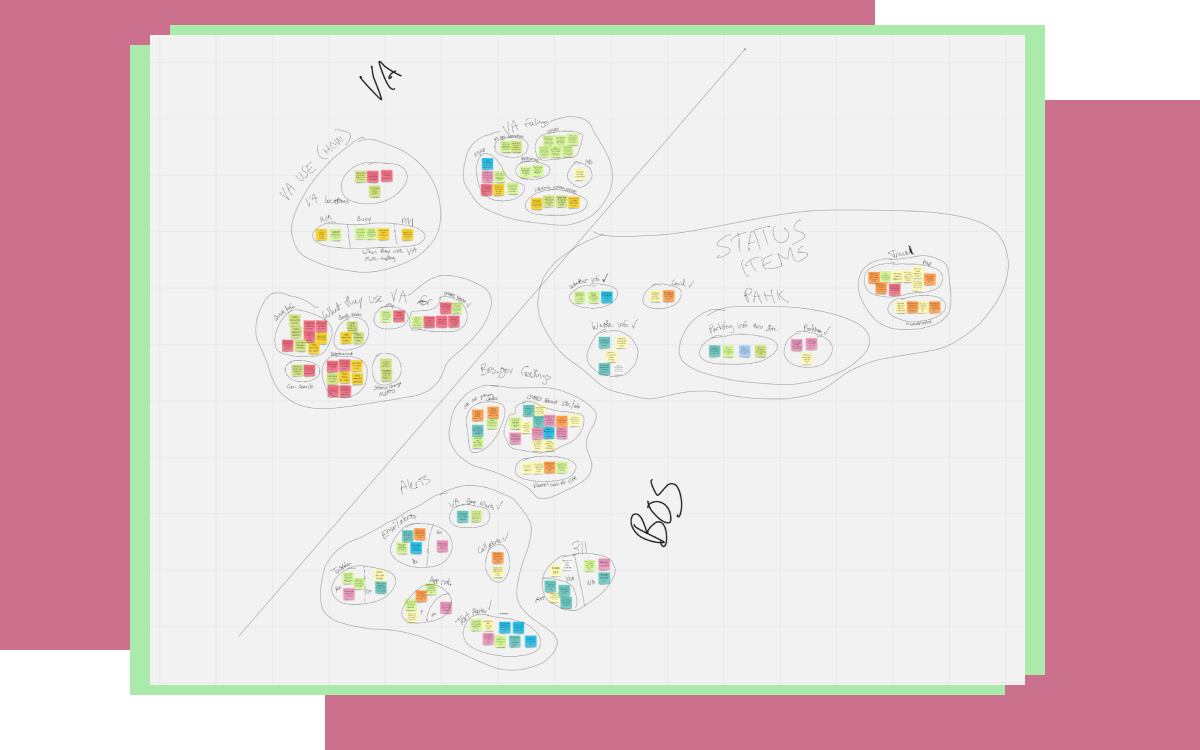

With the results of our user research in hand, it was time to set about organizing our thoughts and discovering the most salient problems that our Alexa Skill can solve. One common method for visualizing this qualitative data is to use an “Affinity Map” - a board of written notes, one insight per note, that can be physically rearranged and regrouped to bring common trends to the surface - think of it as panning for gold, sorting through individual notions to collect the larger clumps of common insights. To achieve this while working remotely, we used Miro to create the note board online.

Key Insights

Our research gave us a number of leads, and plenty of insights that we’d revisit throughout the process. Here are some of the most notable ones:

At this point in the design process, the high-level analysis takes a pause, and pencil finally gets a chance to meet paper! This usually means drawing sketches of the interface, trying out button locations and navigation contents, and generally laying out where all the elements go. But with no visual interface to craft, how can we begin to design the product?

Conversational UX Design

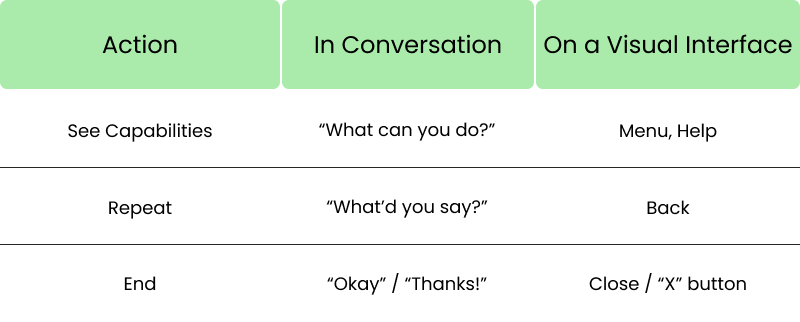

We decided to seek some expert advice, and found it in Dr. Robert Moore, Lead Conversation Analyst and Researcher at IBM, who works on their own Watson-based voice assistant. Dr. Moore literally wrote the book about this very topic (entitled Conversational UX Design), and was gracious enough to sit down with us (remotely, of course), and discuss best practices, new horizons and challenges, and simply what this technology is best at accomplishing. Two major takeaways from our discussion with Dr. Moore were the ideas of Conversational Navigation, and Agent Persona:

Utterances and Expansion

Alexa interactions essentially boil down to two components: Utterances and Intents. Utterances are the words and phrases you say to Alexa, and the response she gives back to you. Intents are the functions or flows that are triggered by the user’s Utterance. For example, if I ask how tall Mount Everest is, that is an Utterance. Those words will trigger Alexa to run the “height-of-Mount-Everest” command, or Intent, which tells her to reply with the proper Utterance: “Mount Everest is 29,029 feet tall”.

This means that a large component of Alexa Skill design is content design. This is true not only for designing the responses that Alexa will give, and in collecting all the questions that can be asked, but also all the WAYS in which those questions can be asked (for instance, asking for the right “trash” day rather than the right “garbage” day). While Amazon has some ways to help with these sorts of phrasing issues, much of the work is still in the hands of the designer to predict and catalog the minutely different ways a question can be asked of Alexa.

Collecting all of these various versions of potential user questions would be exhausting if done manually - the skill currently has nearly 950 stored variations of the question “what’s my trash day” - but we can take a little of the sweat out of it by collecting them programmatically. Writing out each phrase with special syntax to indicate which words can be swapped with which is called “Utterance Expansion”, and plays a big part in making sure the Alexa device understands the way that anyone may ask the skill for information.

Our First Iteration

We could now combine the insights our user base taught us, with what we'd just learned about Conversational UX and all that we already knew about general design, to create our first iteration. This first draft would identify three particular issues that stood out as problems we could improve upon:

With our goals in mind and our team in agreement, we each took a full night to create our own versions of the utterances and intents the skill would offer. The next day, we critiqued and complimented, taking the best parts of each of our designs, and formed one combined prototype that we would be able to test.

Just as we had to rediscover the first step to prototyping for a non-visual system, we needed to learn the first step to testing a non-visual prototype. Though Dr. Moore sympathized with the dilemma (one he faces as well), there are currently no established best practices for testing for voice, beyond writing a paper script to be read by the subject. We would be a bit on our own in developing a test that would suit our needs. No fear, though! This is just another design challenge! What are our needs and constraints?

Creating a Test

A proper test to fit our needs should be able to:

• Capture Verbal Syntax, as opposed to written syntax. We speak differently than we write, and these differences would confound any results we could get from written responses.
• Be consistent, in tone, timing, emphasis, etc. We humans are quite good at picking up meaning from little changes to inflection - making sure our "Test Alexa" is consistent across all trials will keep this from becoming noise in our results.
• Be interacted with, just as a person would with a real Alexa device. If the user has follow-up questions to ask, the prototype needs to be able to respond as Alexa would. Users must also not be able to “read ahead” of Alexa’s responses, as would be possible with a written script.

These all need to be considered while under the following constraints:

• We cannot meet in person, due to the COVID-19 quarantine.
• We can’t use an actual Alexa, because our designs haven’t yet been turned into the code needed to run on the device.

This was a topic of many brainstorming sessions, over many days, even before we had anything yet to test. Finally, in a moment of inspiration, we struck upon the idea to create a soundboard.

The Soundboard

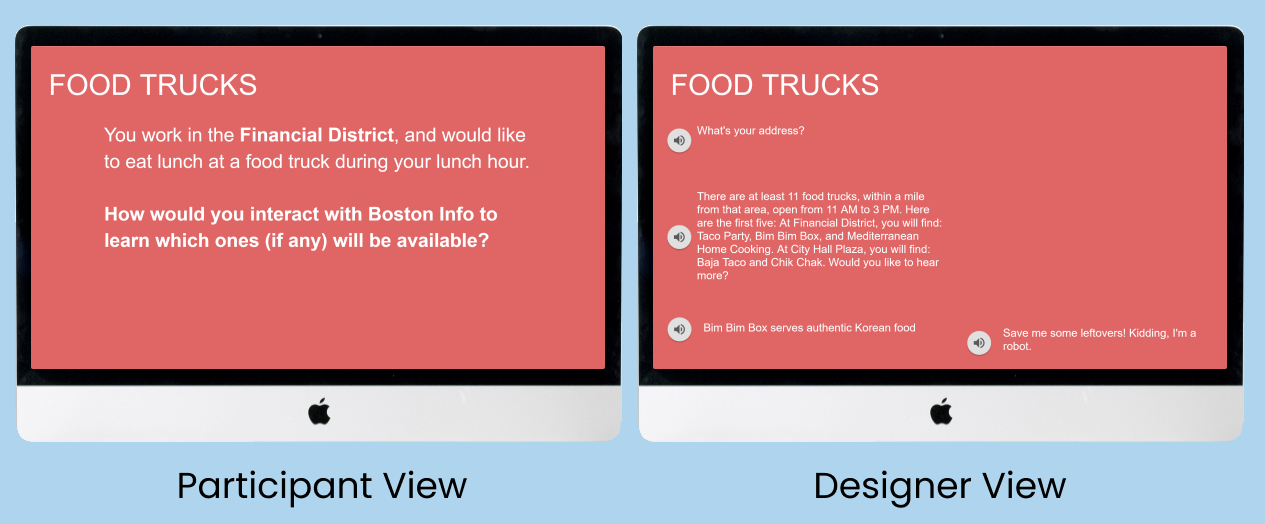

The test would run essentially like so: You, the test taker, would join a video call with one of us, the testers. We would share our screen, presenting one of two slideshows, this one just for the participants to see. On it, you’d see a prompt describing a little scenario you’re in, and be tasked to ask Alexa for some information you would need in such a scenario. You would ask her, in your own words.

Meanwhile, the tester would also have the second slideshow open. This one has the same number of slides, but each slide is composed entirely of links to audio files. These are the Alexa responses, pre-recorded using a text-to-speech tool with Alexa’s tonality, speaking the words we wrote and designed for the skill. When you ask Alexa a question, the tester clicks the appropriate response, and you will hear “Alexa” respond to your question. This continues back and forth for each scenario, all the while being recorded by another tester standing by, taking notes.

We were as robotic as we could be in searching for certain keywords/phrases to trigger which response (which Intent, that is) our users would be given, to approximate how Alexa would choose a proper Intent for a given Utterance.

SUS Score and Results

In order to help quantitatively measure the user’s impressions of our prototype, we employed the System Usability Scale, or SUS. This is a standardized 10-question survey given to a participant after our test, asking such questions as “I thought the system was easy to use” on a scale from Strongly Agree to Strongly Disagree. The scale results can be a little tricky to read - the average score is a 68, and anything above about an 80 is considered a very usable system.

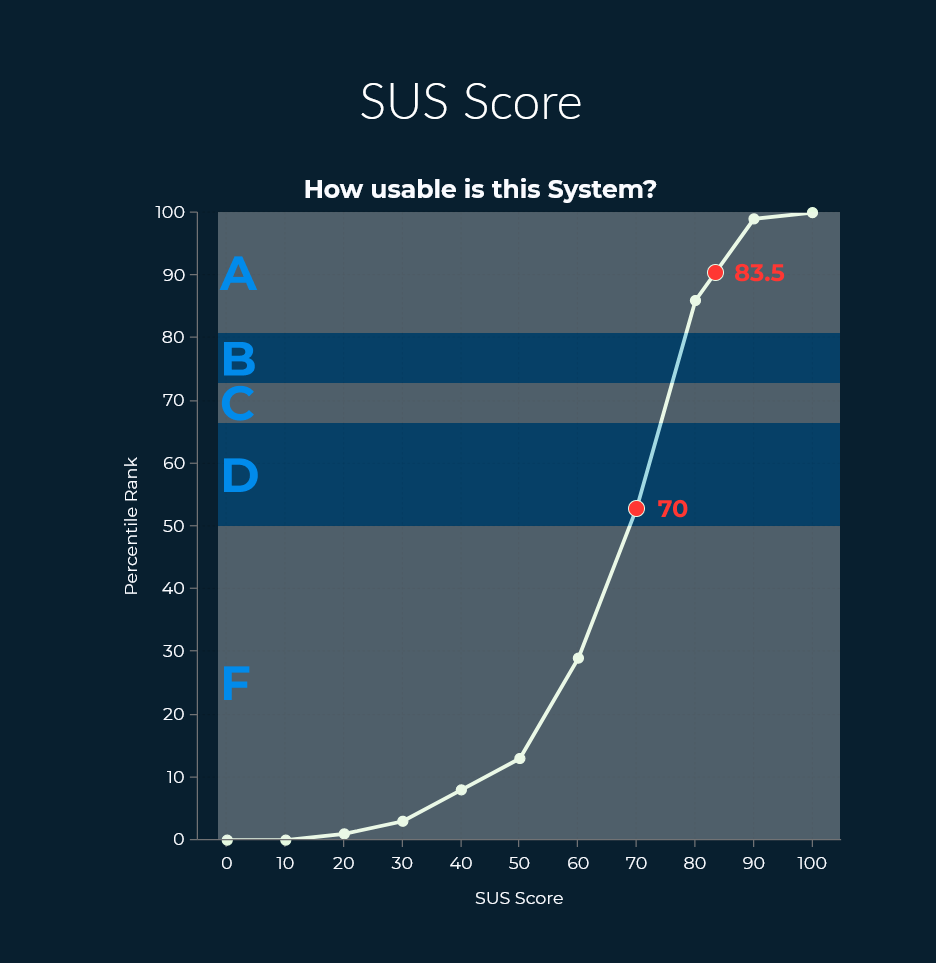

We ran our soundboard test 7 times on the initial version of the skill, plus 6 times on our first iteration on it and 4 times on our second iteration. You can see below that, though the initial version of the skill scored a respectable 70, there was a marked improvement with our final version’s score of 83.5. We do acknowledge that this score cannot fully factor in the experience of using the skill on an actual device, where Alexa’s processing of commands will be different than our own as human testers.

We also collected a lot of qualitative data from our users’ experience. Some major points are listed here:

Highlights

• Concise responses, such as for Trash Pickup, are simple and effective
• The data behind the responses was often well received
• Users were excited about being able to get COVID-19 updates

Considerations

• Users expected more functionality around Public Transit
• The phrase “City Service Alerts”, as used in the skill, is a bit confusing
• Users were interested in being able to store an address for Alexa to remember

As our project concluded, we needed to start dog-earing our notes and saying no to new additions. Our scope needed to be tight enough that we could deliver a finished design back to the City of Boston, but those extra ideas and insights were also passed along for future consideration. Some notable ones include:

• Expanding Transit Alerts to be more specific may help keep it relevant, since many of our test users had high expectations for the feature.
• Commonly found features from other municipal Alexa Skills, like Public Notices and Event Calendars, may be good ideas to consider.

Being able to see our work implemented so quickly, driven in part by such a clear and imperative need like disseminating COVID-19 updates, really showed us the kind of meaningfulness our work can have when we design for a community, with that community’s interests in the forefront of our mind. It’s been so rewarding to work for a group of people who care so much about the citizens their work supports, and we’re thankful to have been able to lend our help!
